In the industrial sector, one of the devices that plays a very important role in increasing the efficiency of machines and cooling towers in the industry is the gear box, which helps adjust the speed of the motor to suit the desired usage in order to obtain the most suitable power and speed. The gear box plays an important role in controlling and improving the efficiency of various types of machines, which helps reduce wear and tear on equipment and increase durability in heavy use. In this article, we will get to know the gear box, its working principles, and the types that are popular in the industry, along with introducing a full range of services from Innovek

What is a motor reduction gear set or gear reducer?

Gear reducer, also known in English as Gear Reducer, Gear Box is a device used to reduce the speed of a motor or machinery. It uses a set of gear teeth to reduce the speed and increase the torque to suit each type of use. The gear reducer is designed to be used with a variety of motors. Therefore, it is often called a motor reducer. This device plays an important role in many types of industries, such as conveyor belts, machinery in manufacturing plants, automatic control systems, and cooling tower systems. The use of gears is efficient

Working principle of gear reduction set

The working principle of the gear reducer motor starts from the motor that sends energy to the input shaft. This energy is transferred through the gear teeth in the gear reducer set. The gear teeth that are designed to reduce the number of revolutions will reduce the speed of rotation from the motor while increasing the appropriate torque. When the energy has gone through the adjustment process within the system, the output shaft will send this energy to the end device, such as a conveyor system or various machines. The energy output will have the desired characteristics, such as reduced speed and increased torque. This process allows the gear reducer to function by adjusting the energy characteristics from the motor to match the needs of the work precisely. In addition, the gear teeth in the gear reducer system are designed to work smoothly and with maximum efficiency, which reduces wear and tear on the equipment and increases its durability in the long run. The design of the gear reducer is also diverse to support applications in different industries, such as systems that require high speed reduction or systems that require increased torque for heavy-duty work, such as lifting in factories or large conveyor systems

What are the types of gear reduction sets that are popular in the industry?

In industry, there are many types of gear reducers, each designed to meet different applications. Selecting the right gear reducer for each application is important to increase efficiency in the production process. Examples of types of gear reducers include:

Worm Gear Reducer

This type of gear is outstanding in that it uses helical gears in conjunction with worm gears, which allows for efficient speed reduction and high torque. It is suitable for applications that require high speed reduction, such as elevators, conveyor belts, and small machinery with limited installation space. The advantages of this type of gear are quiet operation and high speed reduction efficiency in limited space. It can support applications that require smooth and consistent speed reduction, making it a popular choice in industries that require precision and durability

Helical Gear Reducer

This type of gear reducer is known for its high efficiency and quiet operation. Due to the carefully designed gear teeth, it can transfer torque efficiently. Suitable for applications that require high torque and constant speed. It is commonly used in industrial drive systems such as cooling towers or equipment that requires stable speed and constant torque. Helical gear teeth also reduce wear and noise, making it suitable for applications that require precision and long-term durability

Planetary Gear Reducer (Planetary Gear Reducer)

Gear reducers are designed to be compact and capable of transmitting high torque, making them ideal for applications where space is limited, such as in industrial robot production lines or automation systems that require precision and torque stability. This design enables high torque to be handled without taking up much space, making them popular in industries that require the integration of complex systems and precise control, such as machinery manufacturing that requires high resolution and stable movement

Bevel Gear Reducer (Cross Bevel Gear Reducer)

เกียร์ประเภทนี้ได้รับการออกแบบมาเพื่อรองรับการใช้งานที่ต้องการเปลี่ยนทิศทางของการหมุน เช่น ในระบบขับเคลื่อนของยานพาหนะ หรือเครื่องจักรที่ต้องการปรับเปลี่ยนทิศทางของแรงบิด เพื่อให้สอดคล้องกับกระบวนการทำงานที่หลากหลาย เกียร์แบบนี้มีลักษณะเด่นที่การจัดเรียงฟันเฟืองในมุมเฉียง ซึ่งช่วยให้การส่งผ่านแรงบิดทำได้อย่างมีประสิทธิภาพสูงสุด ลดการสูญเสียพลังงาน และเพิ่มความทนทานต่อการใช้งานที่หนักหน่วง นอกจากนี้การใช้งาน Bevel Gear Reducer ยังช่วยเพิ่มความยืดหยุ่นในการออกแบบเครื่องจักร ที่ต้องการการเคลื่อนที่ในทิศทางที่หลากหลาย เช่น ระบบขับเคลื่อนในรถยนต์หรือเครื่องจักรกลในโรงงานอุตสาหกรรม

What are the main considerations when choosing a reduction gear?

Selecting the right gear reduction set for the application is an important step that will help increase the efficiency of industrial machinery systems. The principles for considering the selection of gear reduction sets are as follows:

Suitability for job type

The first thing to consider when choosing a gear reducer is the type of work being done, such as high torque, precision, or systems that require a change in rotation direction. For example:

If you want to reduce the speed at a high level, you should choose a worm gear

If you want high accuracy and limited installation space, you should choose a planetary gear

Torque bearing capacity

A good reduction gear set must be able to support the torque generated in the system, taking into account the power required for continuous operation and the reserve power in case the system has to work hard continuously

Desired speed

Selecting the right gear ratio is important. Higher gear ratios reduce speed more but increase torque, while lower gear ratios give higher speed but less torque. Users should select the gear ratio that is appropriate for their machine and production process

Durability of materials and design

A good reduction gear set should be made of strong, wear-resistant materials, such as steel or corrosion-resistant materials. In addition, a design that reduces friction and noise will increase durability and service life

Installation size and area

Considering the size of the gear reducer to suit the installation space is another important factor, especially in limited spaces. Choosing a planetary gear reducer or helical gear that is compact and highly efficient can solve this problem

Maintenance and after-sales service

A good reduction gear set should be designed for easy maintenance and have complete after-sales service, such as fast spare parts supply and maintenance consultation

Budget and Value

Although high-priced gear reducers often come with quality and durability, users should consider their budget along with long-term value to choose a product that meets both efficiency and cost

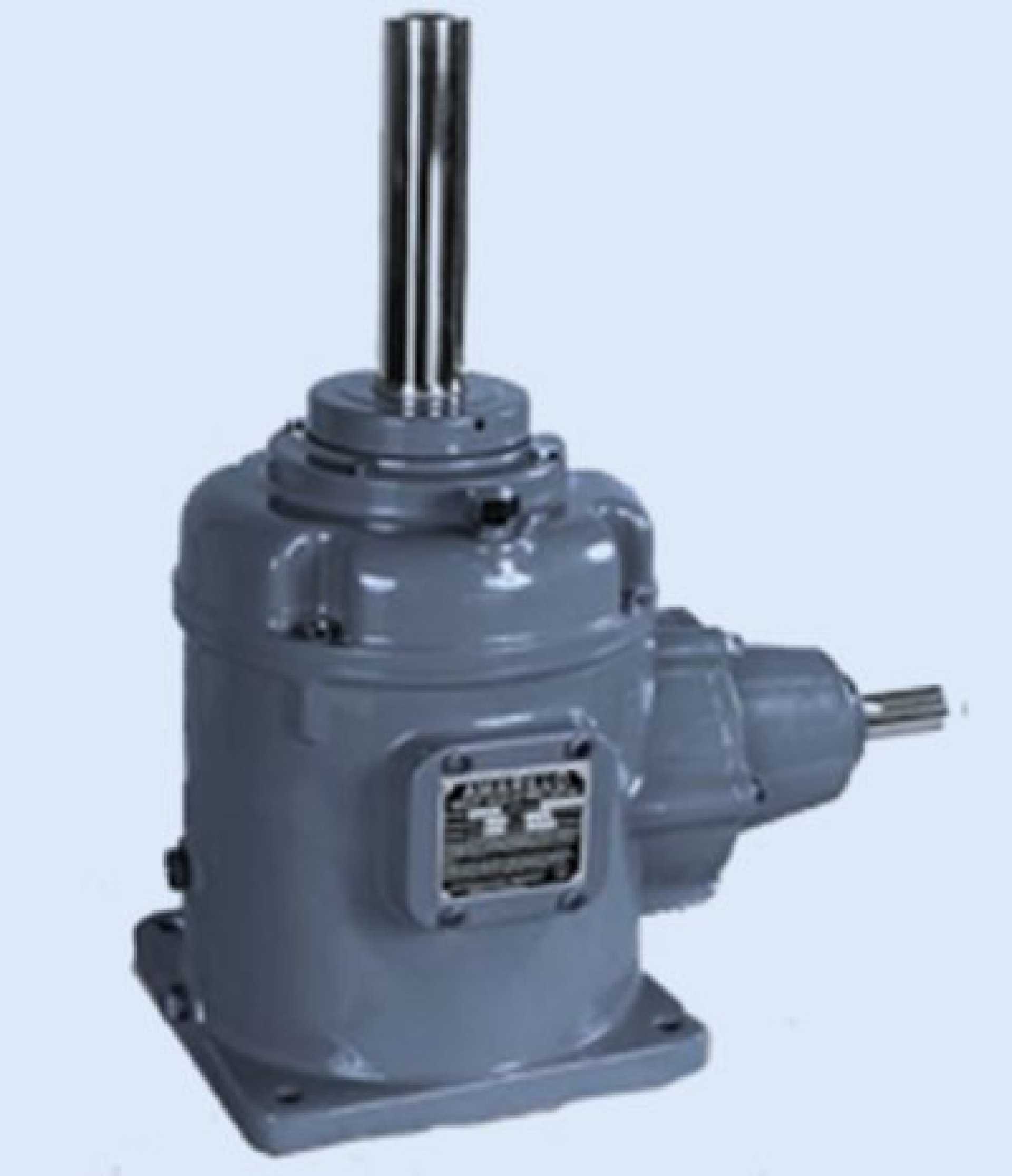

Main function of Gear used in Cooling Tower

Gear is the main important component in Cooling Tower because it acts as a connector for driving force from the motor to various parts of the machine. Its main functions are as follows:

Speed ​​Reduction:

Gears reduce the speed of the motor so that the machinery in the cooling tower can operate at the appropriate speed, such as pumps and fans, without damaging or overworking the system

Torque Transmission:

Gears help transmit the force from the motor to the various devices in the cooling tower, such as the fans that rotate to cool or the pumps that circulate water

Durability and Precision:

Gears in a cooling tower must be highly durable and able to operate in environments with high dust and humidity, which makes it important to choose quality gears that are specifically designed for use in a cooling tower

In summary, the main function of the gear in Cooling Tower is to help the system work efficiently, durable and also result in a long service life

Innovek sells high-quality gear reduction sets, and repairs old parts to make them look like new

Gear reducers are important devices that help reduce motor speed and increase torque to suit various industrial applications, such as conveyor belts, automated machinery, and industrial cooling towers. Every component in the gear reducer set is designed to work together perfectly, focusing on transferring energy for maximum efficiency and reducing potential damage from heavy use. The working principle of the gear reducer set is simple but efficient, making the gear reducer an indispensable device in various industries and an important tool for increasing production capacity and reducing costs in the long run. Innovek is ready to provide quality gear reducers and repair old gears to look like new by our team of experts. If you are looking for gear reducers for industrial use, don't forget to consult Innovek for confidence in efficiency and comprehensive services
